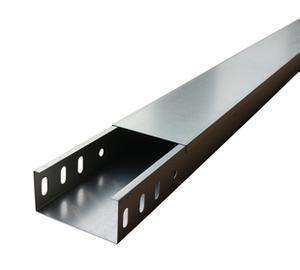

電纜橋架是用來固定電纜的裝置，電纜橋架上大都設有散熱孔，用來散發電纜工作中產生的熱量，保證電纜工作的安全性能，但在灰塵較多的環境下，灰塵容易從散熱孔進入到橋架內部，污染電纜；現有的橋架大都體積固定，不能按照電纜的根數調節體積，不能有效的利用安裝空間，一種可以防灰并且體積大小可調的電纜橋架還有待于進一步研究和開發。
本實用新型的技術方案是：本實用新型的一種插接式防塵電纜橋架，包括左插接槽、右插接槽、溫度感應器、報警裝置、左固定螺栓、右插接螺孔、左插接螺孔、右固定螺栓、透氣孔和防灰罩，所述左插接槽的頂部設有所述溫度感應器和所述報警裝置，所述溫度感應器和所述報警裝置通過電連接，所述左插接槽的頂部設有所述左固定螺栓，所述右插接槽的頂部設有若干所述右插接螺孔，所述左固定螺栓和所述右插接螺孔通過螺紋活動連接，所述左插接槽的底部設有若干所述左插接螺孔，所述右插接槽的底部設有所述右固定螺栓，所述左插接螺孔和所述右固定螺栓通過螺紋活動連接，所述左插接槽和所述右插接槽的側面上均勻分布有所述透氣孔，所述透氣孔上設有所述防灰罩。
A new idea of dust - proof cable bridge

Cable tray is used for fixed cable device, cable bridge frame is equipped with ventilation holes, mostly used to send out the heat generated by the cable work, ensure the security of cable work performance, but in a dusty environment, dust easily from inside the cooling hole into the bridge, pollution of the cable; Existing bridge are mostly fixed volume, not according to the number of the cable to adjust volume, cannot effectively use the installation space, a kind of can prevent dust and adjustable size of cable tray has yet to be further research and development.

The technical scheme of the utility model is: The utility model of a dustproof plug type cable tray, plug slot in the left and right plug slot, temperature sensors, alarm device, left the retaining bolt holes, left, right plug plug screw hole, right, fixed bolts, air holes and dust shields, described in the left top of the plug slot has described described temperature sensors and alarm device, described the temperature sensor and alarm device described by electrical connection, as described in the left top of the plug slot has described left the retaining bolt, described in the right top of the plug slot has described several right plug screw hole, described left fixed bolts and described in the right plug screw hole by screw thread connection, Described left at the bottom of the plug slot has described several plug screw hole on the left, right at the bottom of the plug slot has described described right retaining bolt, described in the left plug screw holes and described right fixed bolt by screw thread connection, described in the left plug slot and described in the right plug slot on the side of the uniform distribution has air holes, described in the grey shields has stated on the air holes.
