一種電纜橋架改進方法

  電纜橋架已經廣泛的用于人類的生活中，伴隨這人們日益增長的物質需求，通過一個地方至另一個地方數據傳輸等均是采用電纜完成的，在人們生活中，特別是類似大型商場或者高檔寫字樓內，裸露在外的電纜通常會給人們帶來視覺疲勞，影響整體的美觀，同時凌亂的分布還會造成維修不便等諸多問題，電纜橋架的產生，完全克服了這些問題，得到廣泛的應用，電纜及電纜橋架一般都會在裝修時放在屋面吊頂的上方，然后在合適的地方設置查驗孔，由于在吊頂的上方都會伴隨有大量的鼠患影響，因此必須使用封閉的電纜橋架才能避免，但是眾所周知，由于電纜在正常的使用中，會產生大量的余熱，如果不及時散熱，很容易產生火災隱患，造成不可估量的后果。
  本實用新型所要解決的技術問題在于提供一種結構簡單，使用方便，安全性能高的防鼠透氣的電纜橋架。
 一種防鼠透氣的電纜橋架，主體由上蓋板和下蓋板組成，其特征在于：所述的下蓋板上兩側設置側板，所述的側板內部及下蓋板的上部設置有一敞口的金屬內槽，所述的金屬內槽與側板及下蓋板之間預留有縫隙且縫隙中設置有定位板，所述的金屬內槽的側壁頂部與側板的頂部位于同一高度，且上端鉚接有一可拆卸的卡槽板，所述的上蓋板的兩側設置有卡條，所述的上蓋板可通過卡槽板與卡條推拉拆卸。

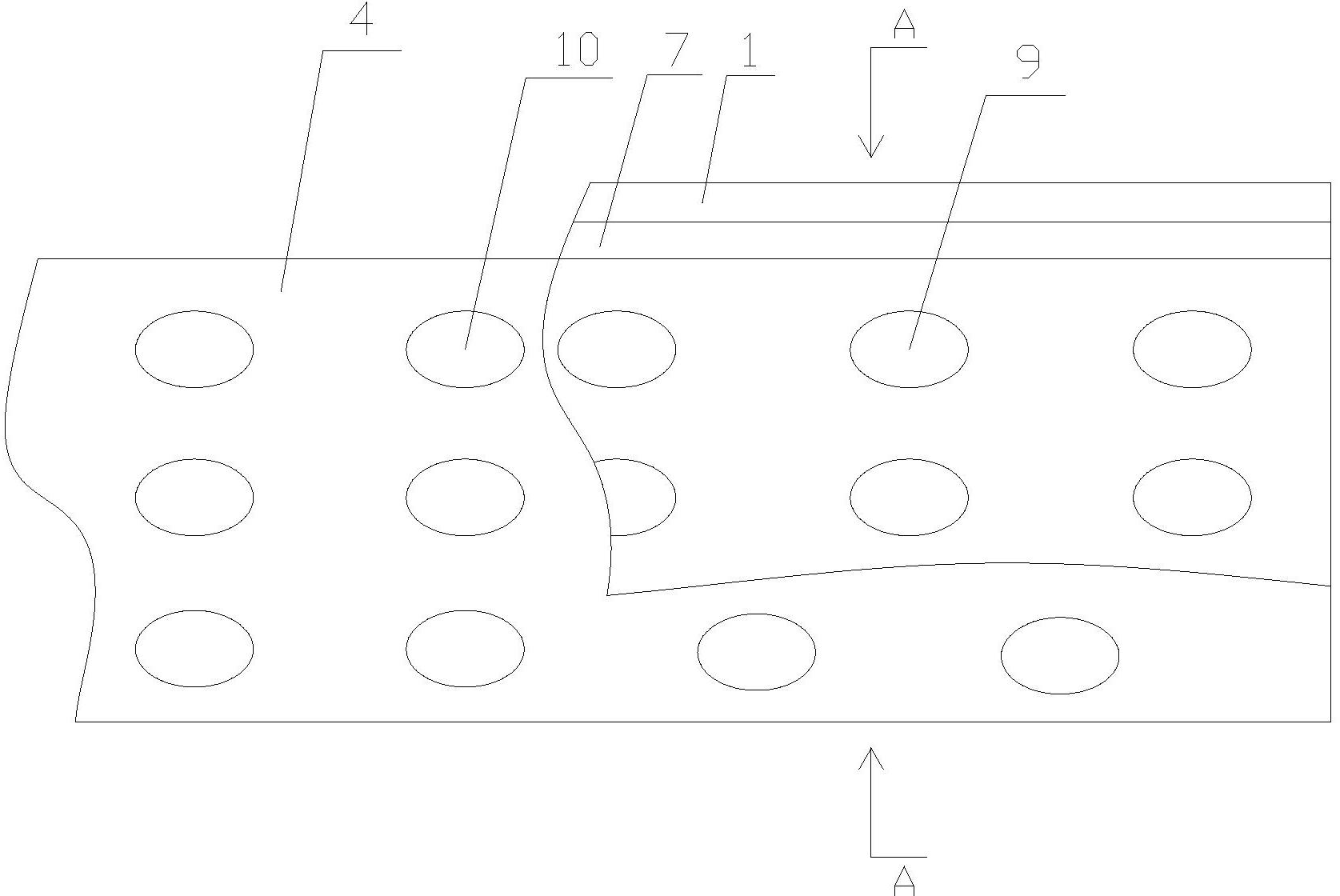

 為了使本實用新型實現的技術手段、創作特征、達成目的與功效易于明白了解，下面結合具體圖示，進一步闡述本實用新型。如圖 1、圖 2 所示，一種防鼠透氣的電纜橋架，主體由上蓋板 1 和下蓋板 2 組成，下蓋板上 2 兩側設置側板 3，側板 3 內部及下蓋板 2 的上部設置有一敞口的金屬內槽 4，金屬內槽 4 與側板 3 及下蓋板 2 之間預留有縫隙 5 且縫隙 5 中設置有定位板 6，金屬內槽 4 的側壁頂部與側板3的頂部位于同一高度，且上端鉚接有一可拆卸的卡槽板 7，上蓋板 1 的兩側設置有卡條 8，上蓋板 1 可通過卡槽板 7 與卡條 8 推拉拆卸，這樣設置后，通過兩層槽設計，不僅保證了橋架的結構更加穩定，側板 3 上設置有透氣孔 9，金屬內槽 4 側壁設置有散熱孔10，散熱孔 10 與透氣孔 9 呈交錯設置，方便了散熱透氣，縫隙 5 預留的距離為 1-3cm，縫隙 5預留小，避免老鼠進入，安全性更強，金屬內槽 4 側壁的外側設置有密集的散熱片 11，散熱更加合理有效，金屬內槽采用鋁合金制作，質地輕，散熱性更好。以上顯示和描述了本實用新型的基本原理和主要特征和本實用新型的優點。本行業的技術人員應該了解，本實用新型不受上述實施例的限制，上述實施例和說明書中描述的只是說明本實用新型的原理，在不脫離本實用新型精神和范圍的前提下，本實用新型還會有各種變化和改進，這些變化和改進都落入要求保護的本實用新型范圍內。本實用新型要求保護范圍由所附的權利要求書及其等效物界定。

Cable bridge has been widely used in human life, along with the people's growing material needs, from one place to another place for data transmission and so on all is done by cable, in people's life, especially like shopping malls or high-grade office buildings, bare cable often bring people visual fatigue, affect the whole beautiful, messy distribution also can repair inconvenience caused many problems, such as the production of cable tray, completely overcome these problems, has been widely used, cable and cable tray generally when decorate on the roof above the ceiling, and then in the right place to set the inspection hole, Due to the above the ceiling will be accompanied by a large number of rat, so must use closed cable tray to avoid, but it is well known that due to the cable in the course of normal use, will produce large amounts of waste heat, if not timely heat dissipation, it is easy to produce fire hazards, have incalculable consequences.

The technical problem to be solved by the utility model is to provide a simple structure, convenient to use and high safety performance rat - proof cable bridge.

A rat breathable cable bridge, the main body is composed of on the cover plate and the lower cover plate, whose character is: under the cover plate on the two sides stated side panel, side panel as described under the internal and cover the upper part of the set one open inside the metal tank, described inside the metal tank between side plate and bottom plate and obligate has cracks and crevices positioning plate is set up, the sidewalls of the mentioned inside the metal tank top and side plate is located in the top of the same height, and the upper riveting has a removable card slot board, described on both sides of the plate setting there are CARDS, mentioned on the cover plate by card slot plate and a push-pull disassembly.

In order to make it easy to understand the technical means, creation features, purpose and efficacy of the utility model, the utility model is further elaborated in the following combination with the specific drawings. As shown in figure 1, figure 2, a rat breathable cable bridge, the main body is composed of cover plate and the lower cover plate 1 2, the two sides set up under the cover board 3, lateral plate 3 internal and set the upper cover plate 2 under a open inside the metal tank 4, inside the metal tank under 3 of 4 and side shell, and the cover plate between two reserved a gap 5 and aperture setting a positioning plate (6), inside the metal tank top of the wall at the top and side plate 3 4 at the same height, and the upper riveting has a removable card slot board 7, on both sides of the cover plate 1 set have card of article 8, On cover plate 1 article by card slot plate 7 and 8 push-pull disassembly, after this setting, through the two layers of groove design, not only to ensure the bridge structure more stable, lateral plate 3 set have air holes on 9, 4 side wall inside the metal tank set cooling hole 10, heat dissipation holes and air holes 9 show interlaced set 10, convenient for cooling air, the distance of the gap 5 reserved for 1-3 cm, small gap 5 reserved, avoid entering, security, stronger inside the metal tank 4 side wall of the lateral set has 11 intensive heat sink, heat dissipation is more reasonable and effective, The metal inner groove is made of aluminum alloy, with light texture and better heat dissipation. The above shows and describes the basic principle, main features and advantages of the utility model. Industry technical personnel should be aware of the utility model is not restricted by the above example, the implementation of the case and manual only describes the principle of this utility model, not from the spirit and scope of this practical new type under the premise of the utility model will also have a variety of changes and improvements, these changes and improvements to request protection range of the utility model. The scope of protection required by the utility model is defined by the attached claim and its equivalent.
