云南新型托盤式電纜橋架

電纜橋架主要用于供電配套電力輸送及有線電信轉送等綜合布線，敷設電纜的支撐構件。這種支撐構件在電力供應部門，工礦企業、酒店、綜合辦公設施的集中供配電的電力輸送系統及有線電信等應用最廣泛。電纜線在正常工作時要散發大量的熱量，而現有托盤式橋架底板多為整體式平板，缺少散熱結構，不利于電纜線的散熱，電纜線長時間處于高溫下勢必影響其使用壽命。橋架安裝時需要將多個橋架通過側板連接在一起，因此橋架側板兩端會設有連接孔，而現有橋架連接孔大多只有一個，且形狀多為與連接螺栓匹配的圓形，不能根據實際情況進行調節，增加了裝配的難度，不利于裝配效率的提高。
本發明的目的是克服現有技術存在的缺陷，提供一種散熱好、安裝方便的托盤式電纜橋架。實現本發明目的的技術方案是 ：一種托盤式電纜橋架，具有底板和與底板兩側固定連接的側板 ；所述底板和側板一體成型 ；所述底板上還設有若干散熱孔。上述技術方案，所述散熱孔呈圓形、長方形、正方形或鍵槽形，所述若干散熱孔均布在底板上。上述技術方案，所述側板上部設有翻邊，側板側面兩端均設有多個連接孔。上述技術方案，所述側板一端上的連接孔有 3 個，連接孔形狀為鍵槽形。上述技術方案，所述底板的寬度為 200 ～ 1000mm，所述側板高度為 60 ～ 200mm，側板長度為 2000mm。
采用上述技術方案后，本發明具有以下積極的效果 ：
（1）本發明底板和側板一體成型，簡化了生產工藝，提高生產效率，節約生產成本 ； 且底板上設有多個散熱孔，可大大提高散熱效率，有效提高了電纜線的使用壽命，另一方面 還可降低電纜橋架的重量 ；
（2）本發明側板上翻邊可用于橋架上部封蓋的插裝連接，側板上連接孔平行設置多個，且形狀設計為鍵槽型，可根據實際情況選擇合適位置的連接孔進行連接，使安裝更方便，能夠大幅度提高安裝效率 ；
（3）本發明結構簡單，造型別致，成本低，強度高，即適用于動力電纜的安裝，也適用于控制電纜敷設。
具體實施方式

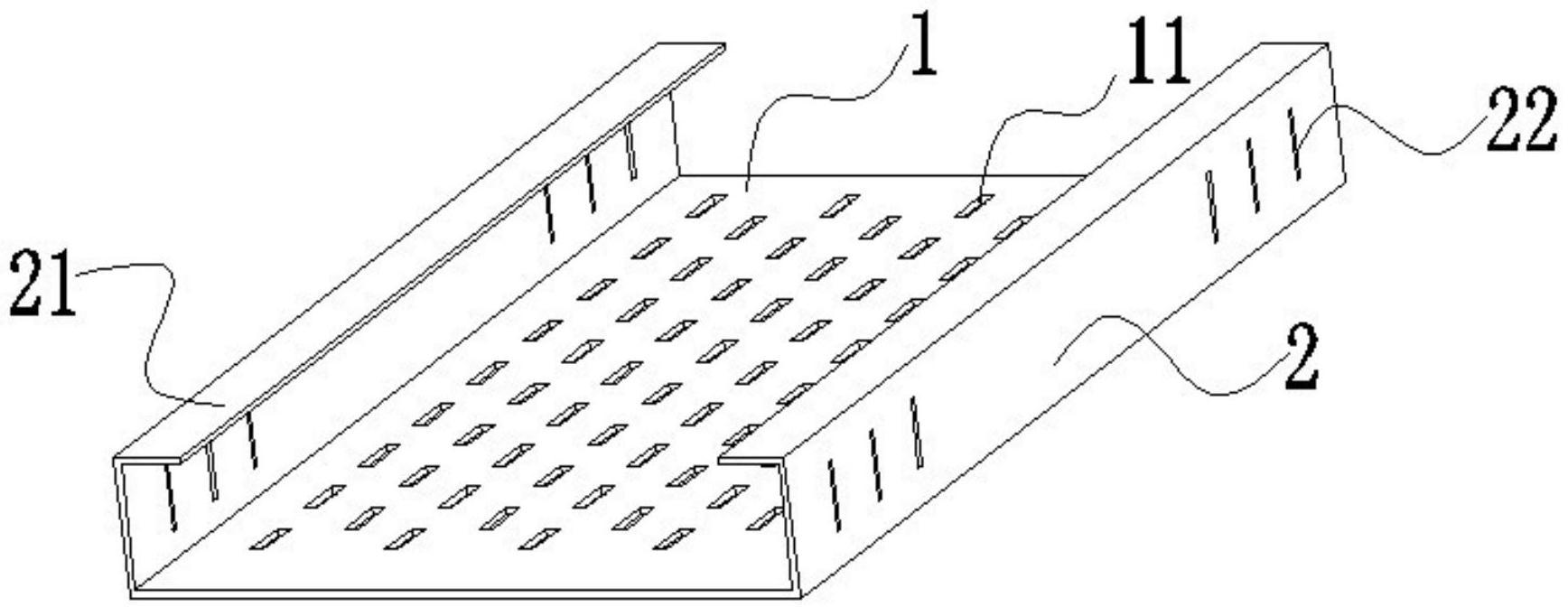

本發明具有底板1 和與底板1 兩側固定連接的側板2 ；其特征在于 ：所述底板 1 和側板 2 一體成型 ；所述底板 1 上還設有若干散熱孔 11。
 優選地，所述散熱孔 11 呈圓形、長方形、正方形或鍵槽形，所述若干散熱孔 11 均布在底板 1 上。
 優選地，所述側板 2 上部設有翻邊 21，側板 2 側面兩端均設有多個連接孔 22，本實施例連接孔 22 有 3 個，連接孔 22 形狀為鍵槽形。
 根據客戶實際需求，底板 1 的寬度可為 200 ～ 1000mm，側板 2 高度可為 60 ～200mm，側板 2 長度可為 2000mm。
以上所述的具體實施例，對本發明的目的、技術方案和有益效果進行了進一步詳細說明，所應理解的是，以上所述僅為本發明的具體實施例而已，并不用于限制本發明，凡在本發明的精神和原則之內，所做的任何修改、等同替換、改進等，均應包含在本發明的保護范圍之內。The cable bridge is mainly used for power supply supporting power transmission and cable telecommunication transmission. This kind of support component is most widely used in power supply department, power transmission system and cable telecommunication of centralized power supply and distribution of industrial and mining enterprises, hotels and comprehensive office facilities. Cable in normal work to send out a lot of heat, and the existing pallet bridge floor is integral plate more, lack of heat dissipation structure, bad for heat dissipation of cables, cables for a long time under high temperature is bound to affect its service life. Bridge installation time need to connect more than one bridge through the side panel together, so the bridge has the connection holes on both ends of the side panel, and most of the existing bridge connecting hole is only one, and the shape is round, with the connection bolt matching more cannot be adjusted according to actual condition, increased the difficulty of the assembly, assembly efficiency.
The purpose of the present invention is to overcome the defects of the existing technology and provide a tray cable bridge with good heat dissipation and convenient installation. The technical scheme for the purpose of the present invention is: a tray-type cable bridge with a bottom plate and a side plate fixed to both sides of the bottom plate; The bottom plate and side plate are formed in one piece; A number of heat dissipation holes are also arranged on the bottom plate. In the above technical scheme, the heat dissipation holes are round, rectangular, square or keyway shape, and the heat dissipation holes are arranged on the bottom plate. In the above technical scheme, the upper part of the side plate is provided with a flanging edge, and the two sides of the side plate are provided with multiple connecting holes. In the above technical scheme, there are three connecting holes on one end of the side panel, and the connecting hole is in the shape of a keyway. In the above technical scheme, the width of the bottom plate is 200-1000mm, the height of the side plate is 60-200mm, and the length of the side plate is 2000mm.
After adopting the above technical scheme, the invention has the following positive effects:
(1) the bottom plate and side plate of the invention are formed in one body, simplifying the production process, improving the production efficiency and saving the production cost; In addition, there are multiple cooling holes on the bottom plate, which can greatly improve the heat dissipation efficiency, effectively improve the service life of the cable, and on the other hand reduce the weight of the cable bridge.
(2) the invention flanging on side panel can be used for bridge frame block instrumentation connection, parallel connection hole on the side panel set up multiple, and shape design for slotting type, according to actual situation to choose the right position of connection holes to connect, make the installation more convenient, can greatly improve the efficiency of the installation;
(3) the present invention is simple in structure, unique in shape, low in cost and high in strength, which is applicable to the installation of power cable and control cable laying.
Specific implementation mode
The invention has a bottom plate 1 and a side plate 2 fixedly connected to both sides of the bottom plate 1; Its features are as follows: the bottom plate 1 and the side plate 2 are formed in one body; A number of cooling holes 11 are also arranged on the bottom plate 1.
Preferably, the heat dissipation holes 11 are round, rectangular, square or keyway shape, and the heat dissipation holes 11 are arranged on the bottom plate 1.
Preferably, the upper part of the side plate 2 is provided with a flanging 21, and the two sides of the side plate 2 are provided with multiple connection holes 22. In this example, there are 3 connection holes 22, and the connection hole 22 is shaped like a keyway.
According to the actual needs of customers, the width of floor 1 can be 200-1000mm, the height of side 2 can be 60-200mm, and the length of side 2 can be 2000mm.
The specific implementation of the above example, the purpose of the invention, technical scheme and beneficial effects for further details, should understand that the above is only for the specific implementation example of the present invention, are not used to limit the invention, all within the spirits and principles of the present invention, did any modifications, equivalent replacement, improvement, etc., shall be included in the protection scope of the present invention.
